ASA/ANSI 150 LB. FORGED FLANGES

Technical table and diagrams detailing dimensions of various chain sprockets.

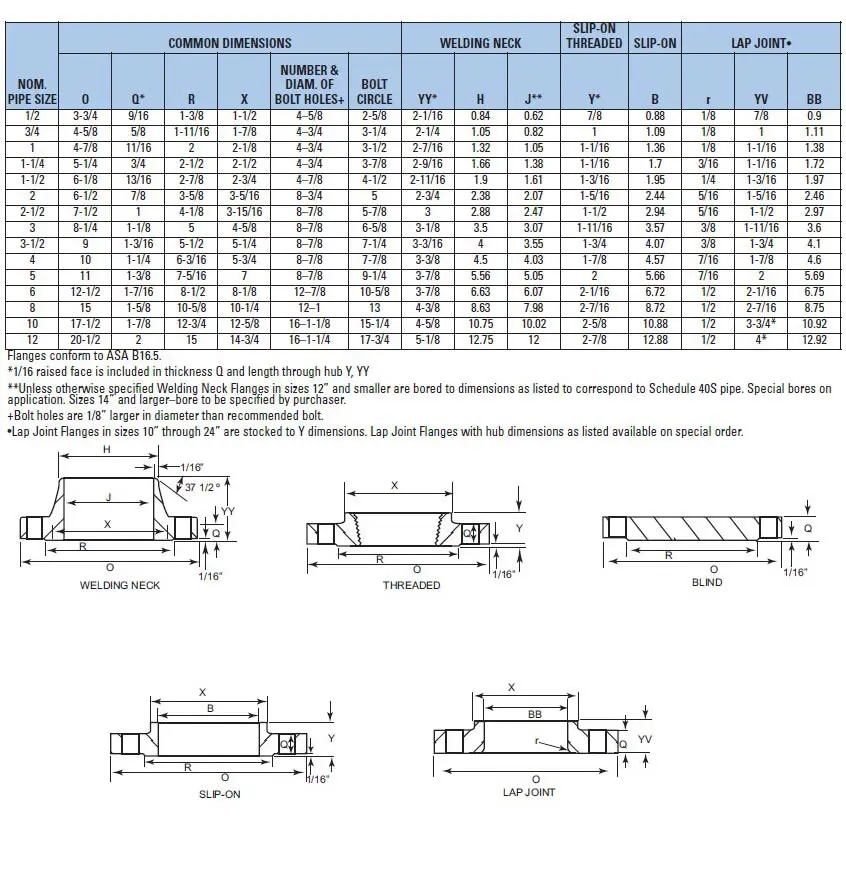

ASA/ANSI 300 LB. FORGED FLANGES

Technical table and diagrams detailing various dimensions of a mechanical part.
